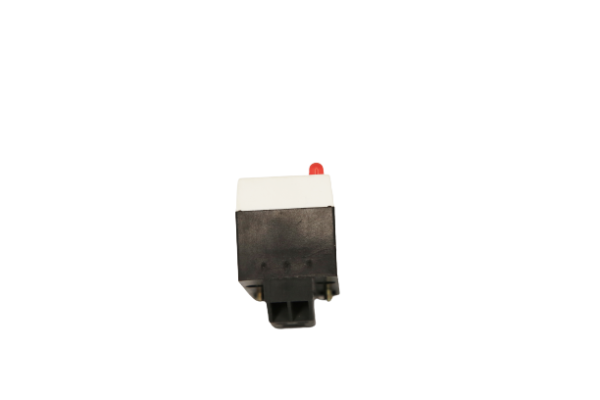

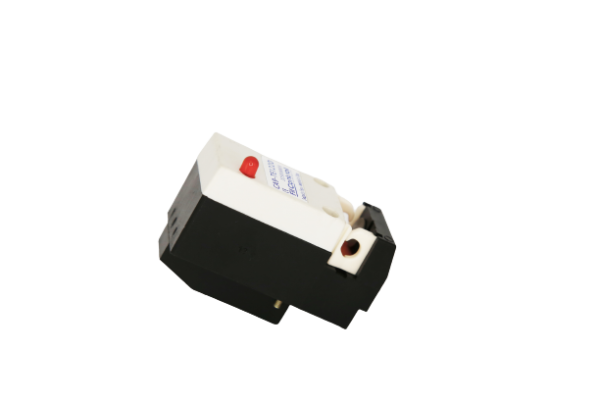

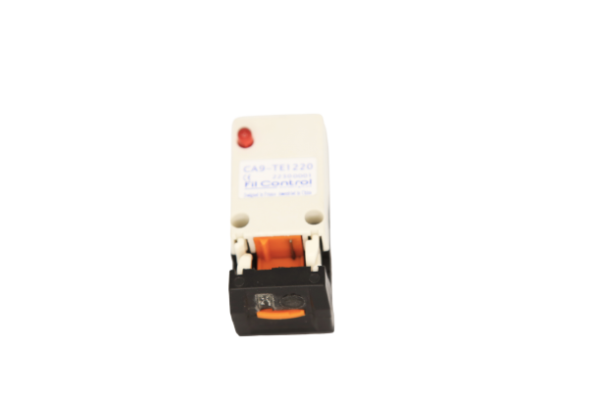

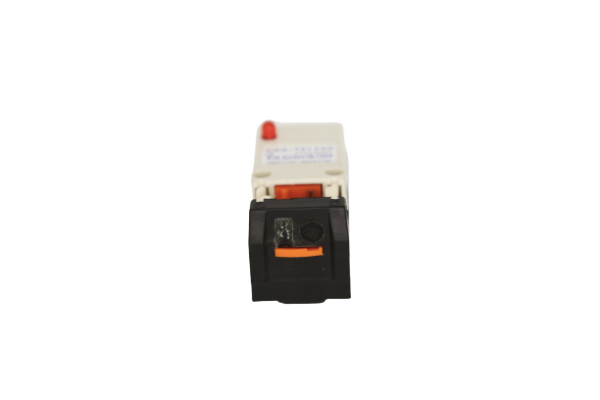

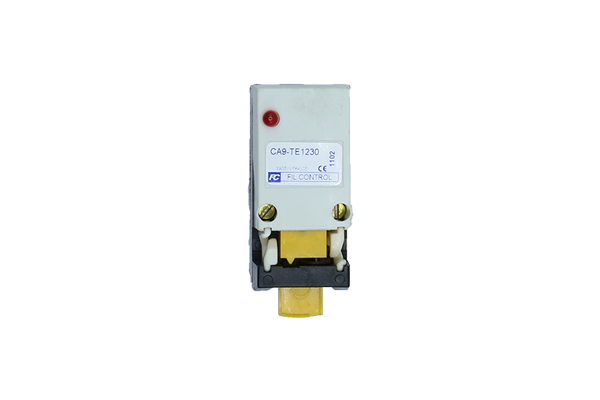

When operating on yarn machines, the breaking of one (or more) yarn has to be detected immediately and automatically. Yarn sensors play this part. To avoid a “wild” rewinding which could be cause of perturbations on neighbouring sites, even of breaking of the machine, it is recommended to mount CA9-TE onto the machines. First they cut off the broken yarns, second they grip them.
On winding machines, the yarn has to be cut when the bobbin is full. CA9-TE series have to be manually reloaded.
product
Case type | Plastic |
---|---|
Control System | Electrical |
Detection configuration | N/A |
Detection head | N/A |
Detection type | Signal input |
Fork size | N/A |
Output type | N/A |
Product type | Yarn cutter |
Reload type | Manual |
Yarn count | High count yarns (<7000DTex) |
Yarn motion | Linear yarn motion |
Yarn type | Man-made yarn Natural yarn |
Mounting type | Screw |
